Configuring Digital Inputs

PreviousConfiguring Analog InputsNextConfiguring Digital Outputs

Last updated 2 years ago

To make a Local I/O Channel operate as a digital input, first click the channel in the sidebar to go to the channel settings view:

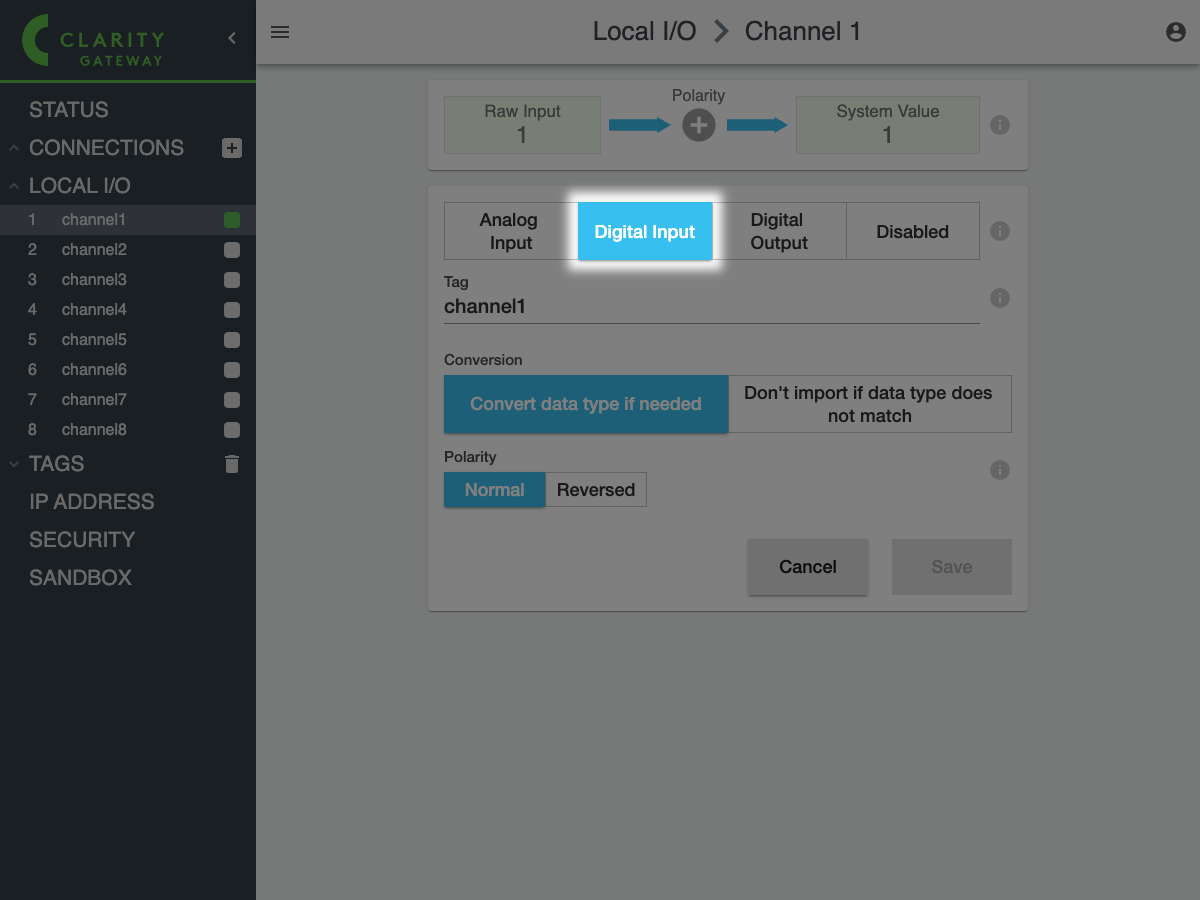

Then click Digital Input in the view that appears:

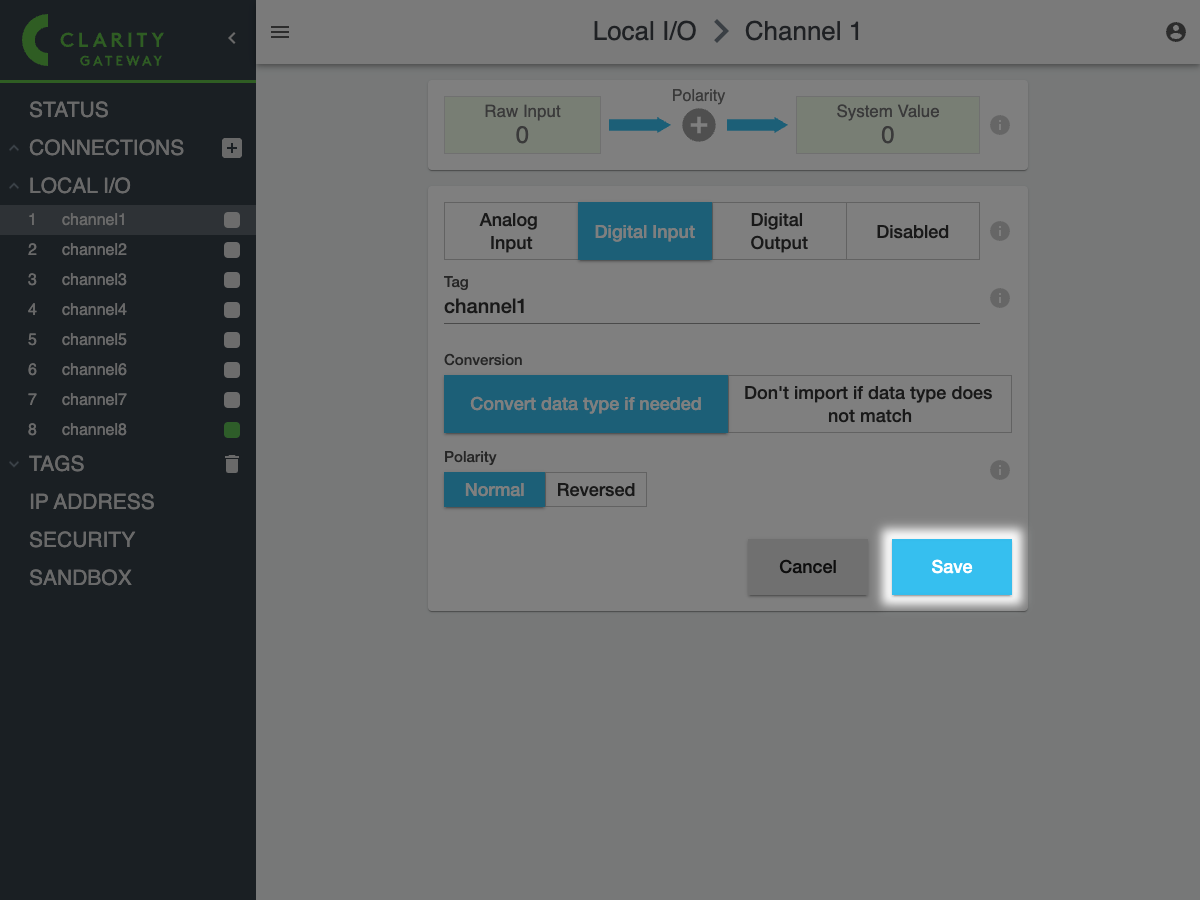

Finally, click Save:

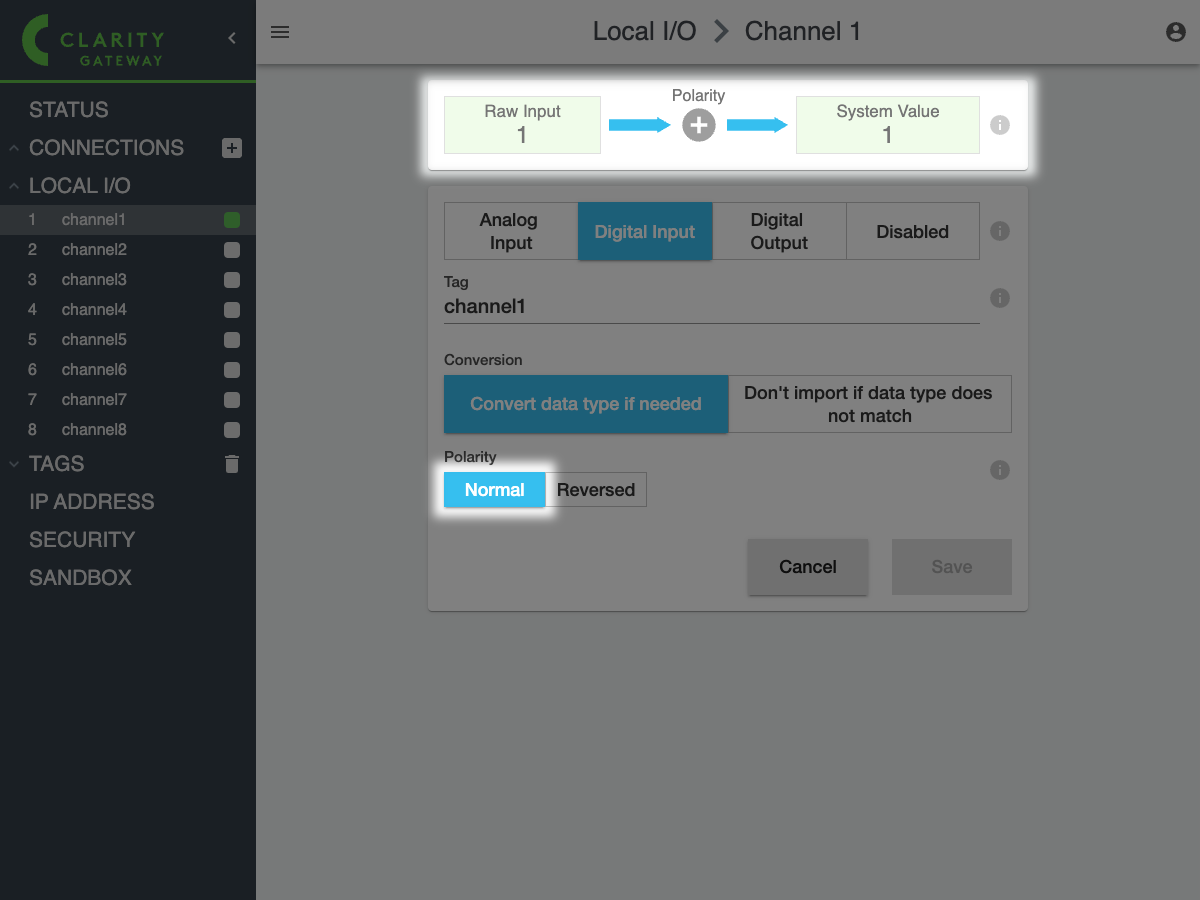

Digital inputs may have a Polarity of Normal or Reversed. In Normal polarity, if the Raw Input value is 0, the System Value will also be 0 (this value is written to the configured tag, which is channel1 in this case):

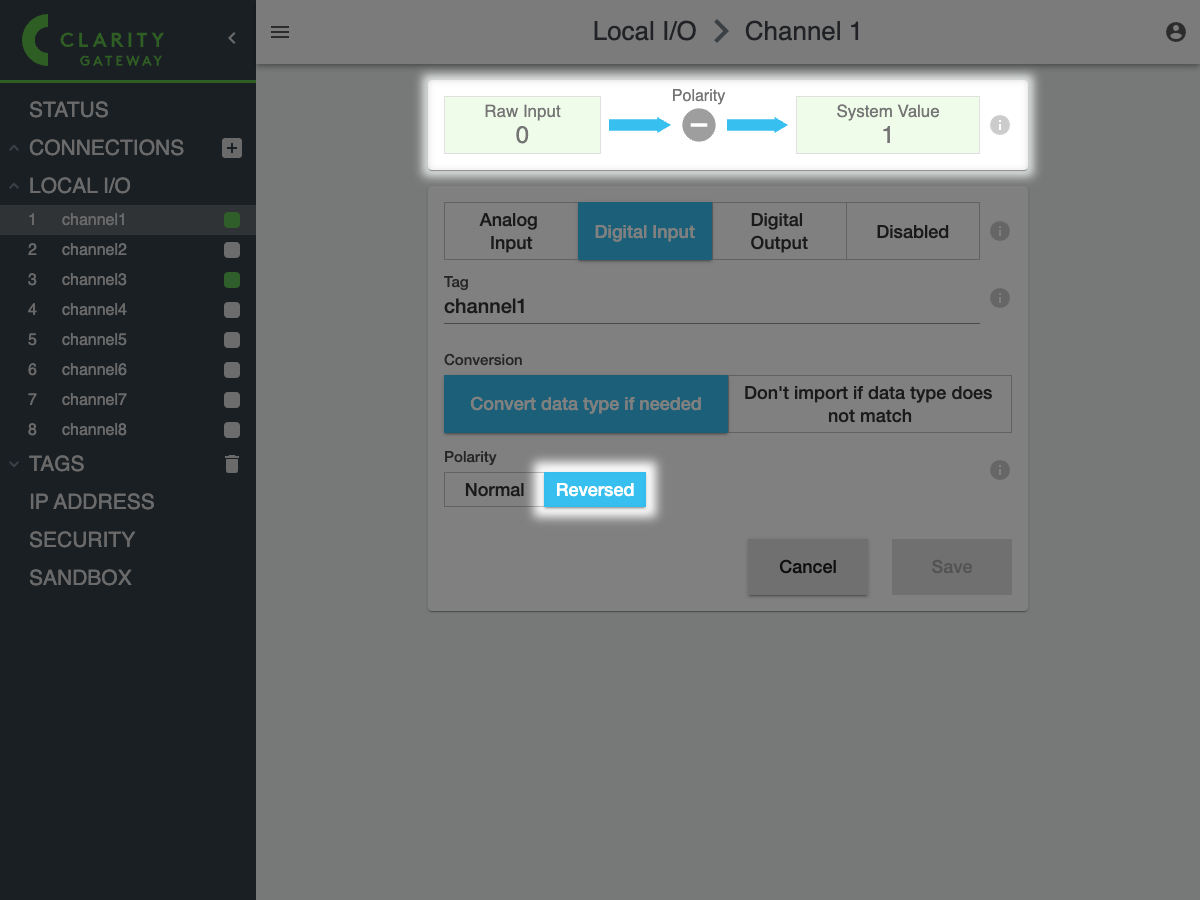

In Reversed polarity, if the Raw Input value is 0, the System Value will be 1, and vice versa:
