# Network Layout

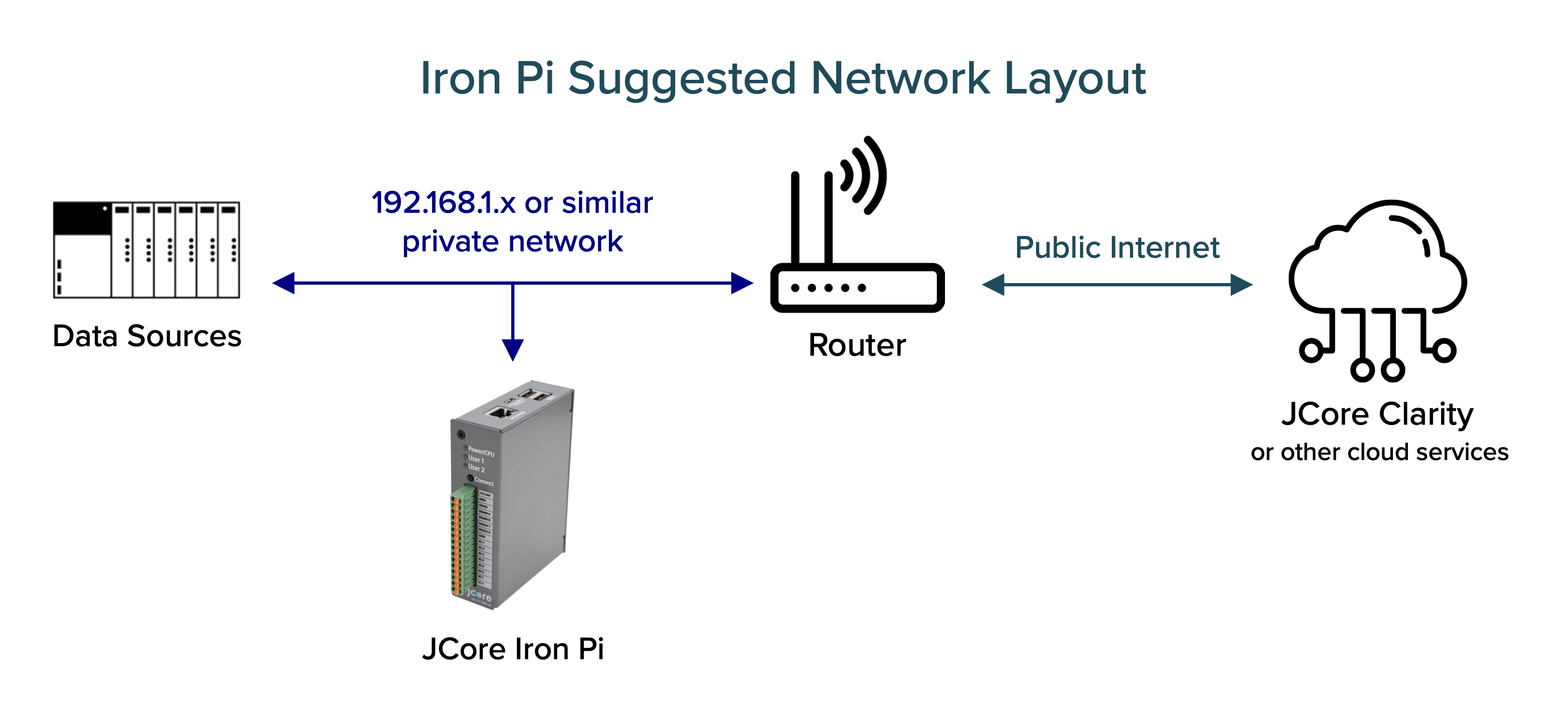

The Iron Pi should normally be connected alongside your data sources on a private local area network. the Iron Pi is addressed by default to operate on a 192.168.1.x network, but you can [change its network settings](/clarity-gateway/installation/readme/changing-the-ip-address.md) to operate in other address ranges like 10.1.1.x.

<figure><img src="https://1557066017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSPy42kVbNL57hubF20gF%2Fuploads%2Fgit-blob-71089d57475c6efa626d7db6b454f414aabc185f%2FClarity%20Gateway%20Network%20Layout.png?alt=media" alt=""><figcaption></figcaption></figure>

In most cases, a NAT router or modem should connect the private LAN to the public Internet.
